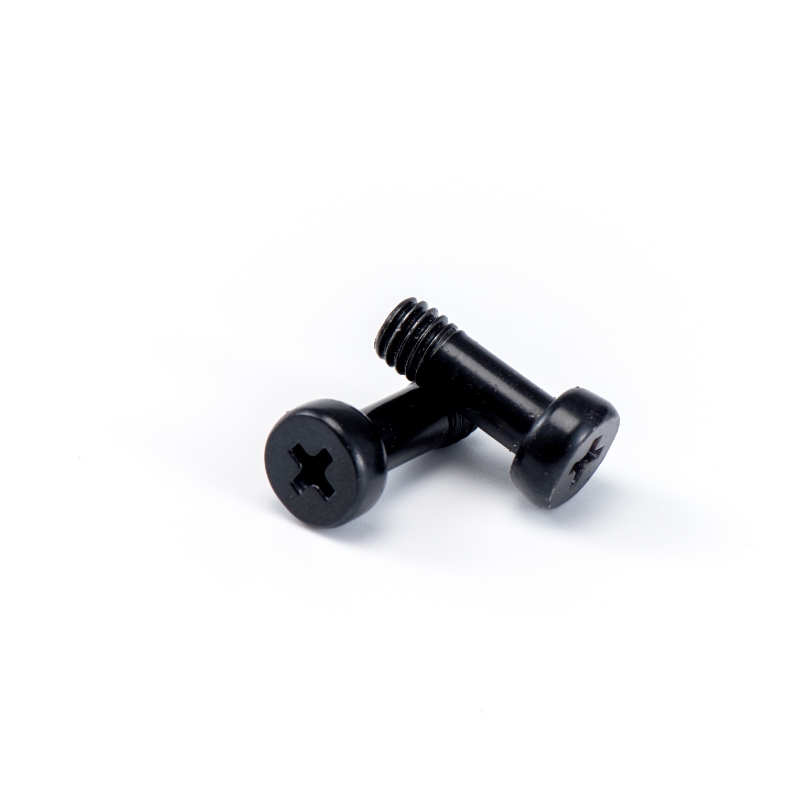

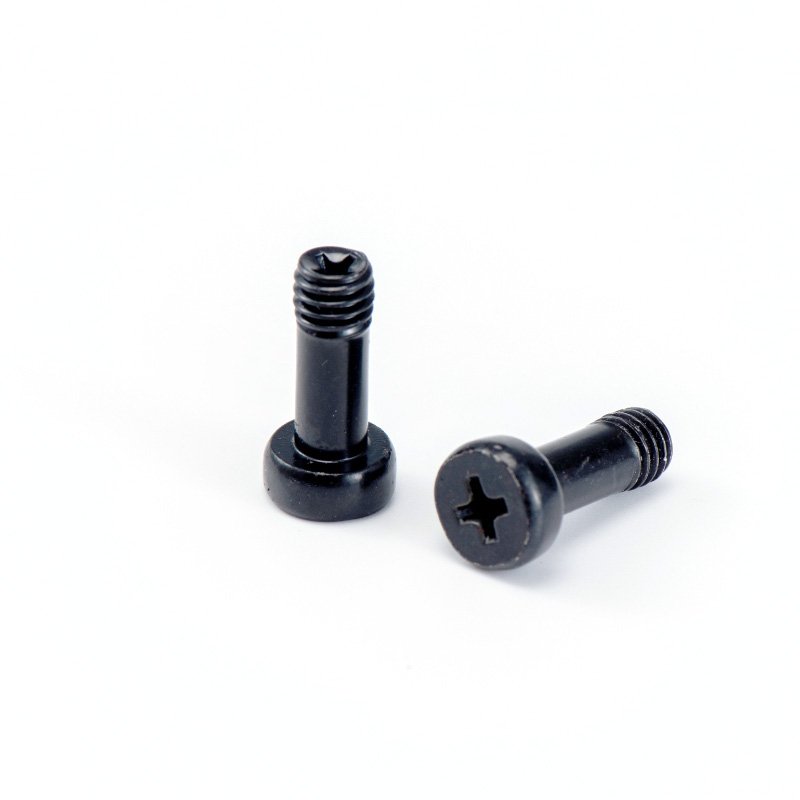

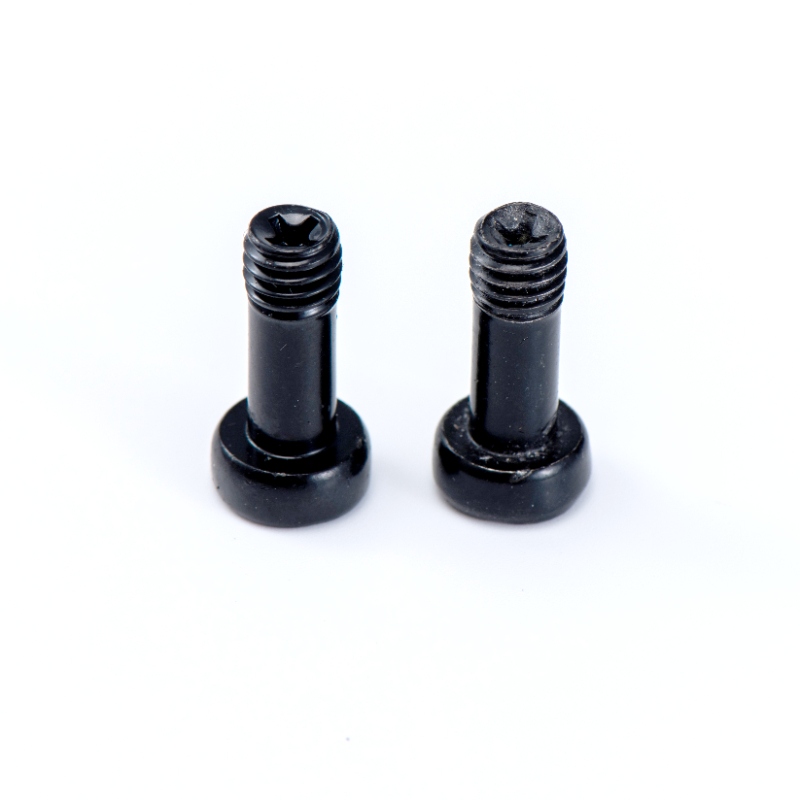

Cross Recessed Screws, commonly known as Phillips Screws, are fasteners with a cross-shaped drive that provides excellent torque and grip. These Screws are widely used in various industries due to their versatility, ease of use, and ability to securely fasten components in a wide range of applications. Their design makes them ideal for use in high-torque situations, where the screwdriver or drill can achieve better grip and more efficient rotation.
Main Features
1.Cross-Shape Drive: The distinct cross-shaped recess in the head allows for easy insertion and a secure fit with Phillips screwdrivers, reducing the risk of slipping during installation.
2.High Torque Transmission: The design of the cross recess ensures an even distribution of torque, making it suitable for applications that require a higher torque application.
3.Variety of Sizes: Available in a wide range of sizes and thread configurations, Cross Recessed Screws can be customized for different applications, from electronics to automotive and construction.
4.Durability: Made from various materials such as stainless steel, carbon steel, and alloy steel, these screws are designed for durability and resistance to corrosion and wear.
5.Precision Manufacturing: These screws are manufactured to meet high industry standards for precision and reliability, ensuring a consistent performance.
Application fields
1.Electronics: Used in the assembly of consumer electronics, such as smartphones, laptops, and appliances, where secure fastening is critical.
2.Automotive Industry: Cross recessed screws are commonly used in automotive assembly for fastening interior components, engine parts, and electrical systems.
3.Construction & Furniture: Their strong holding power and versatility make them ideal for construction projects, especially for wood and metal applications.
4.Industrial Equipment: Often used in manufacturing equipment and machinery, where precision and reliable fastening are essential.
| Parameter | Description |
|---|---|
| Material | Steel, Stainless Steel, Brass, Alloy Steel, Zinc-Plated Steel |
| Head Type | Flat, Pan, Button, Truss, Oval |
| Drive Type | Phillips, Pozidriv, Cross Slot |
| Thread Type | Coarse Thread (UNC), Fine Thread (UNF), Metric Thread |
| Thread Pitch | 0.5mm - 2.0mm (depending on size and thread type) |
| Size Range | M2 to M10 (Metric), #0 to #14 (Imperial) |
| Length Range | 5mm to 100mm (depending on size and application) |
| Finish | Zinc-Plated, Black Oxide, Stainless Steel, Plain, Chrome-Plated |
| Tensile Strength | 400 - 800 MPa (depending on material used) |
| Corrosion Resistance | Good to Excellent (depending on material: Stainless Steel has the best resistance) |
| Load Capacity | Varies with size, material, and application (typically 10-50Nm torque resistance) |
| Head Diameter | 4mm to 14mm (depending on screw size and head type) |
| Drive Slot Depth | 1mm to 3mm (depending on screw size and type) |
| Compliance Standards | ISO 8765, DIN 7500, ANSI B18.6.3 (depending on region and application) |
| Material | Characteristics | Applications |
|---|---|---|
| Steel | Standard material, durable, strong, suitable for general applications | Automotive, Manufacturing, Construction |
| Stainless Steel | Corrosion-resistant, ideal for outdoor or marine environments, highly durable | Marine, Outdoor Equipment, Food Industry |
| Brass | Corrosion-resistant, attractive appearance, excellent conductivity, softer than steel | Electronics, Decorative Fixtures, Electrical Work |
| Zinc-Plated Steel | Good corrosion resistance, cost-effective alternative for many applications | Outdoor furniture, machinery, general assembly |
| Alloy Steel | High strength, resistance to wear, fatigue-resistant for heavy-duty applications | Industrial machinery, automotive components |
| Head Type | Description | Applications |
|---|---|---|
| Flat Head | Flat top with a countersink design to sit flush with the surface. | Furniture, woodwork, electronics assembly |
| Pan Head | Slightly rounded top, ideal for flush assembly in sheet materials. | Appliances, automotive, electrical devices |
| Button Head | Rounded top without a countersink. | Decorative or aesthetic applications |
| Truss Head | Low profile with a wide, round shape for a larger bearing surface. | Furniture, automotive, and heavy-duty applications |
| Oval Head | Slightly rounded top with a slight curve for decorative uses, provides a flush finish when countersunk. | Electronics, decorative items, light fixtures |
| Drive Type | Description | Advantages |
|---|---|---|
| Phillips | Standard cross-shaped pattern for high torque transfer. | Prevents cam-out, easy to use with standard tools |
| Pozidriv | Enhanced Phillips design with additional cross slots for better grip and torque transfer. | Reduced cam-out, improved torque transfer, more durable |
| Cross Slot | A cross-shaped recess that can be compatible with multiple screwdriver types. | Flexible, can be used with various tools |
| Thread Type | Pitch (mm) | Standard Size Range | Application |
|---|---|---|---|
| Coarse Thread (UNC) | 1.0mm to 2.0mm | M2 - M10 | General applications, woodwork, soft metals |
| Fine Thread (UNF) | 0.5mm to 1.0mm | M2 - M6 | Precision fastening, aerospace, electronics |
| Metric Thread | 0.5mm to 2.0mm | M2 - M10 | Automotive, machinery, industrial applications |
Advantages
1.Anti-slip performance:The cross slot design allows the screwdriver to grip the screws better and reduces slippage.
2.High torque transmission:can withstand high torque, suitable for applications requiring strong fastening force.
3.Easy to operate:The widely used standard design makes it easy to operate and match almost all screwdriver tools.
Precautions
1.Choose the right screwdriver:Use a screwdriver that matches the slot shape of the screw to avoid damaging the head of the screw.
2.Install correctly:When screwing in the screws, make sure the screwdriver is aligned with the screw slot to ensure the best tightening effect.
3.Prevent damage:Avoid over-tightening, especially when using plastic parts, to prevent damage to the screws or parts.
What are Cross Recessed Screws?
Cross recessed screws are screws with a cross-shaped slot in the head, which are usually installed and removed using a Phillips screwdriver.
What is the difference between Philips screws and Pozidriv screws?
Philips Screws have standard Phillips slots, while Pozidriv Screws have additional small Phillips slots on top of the Phillips slots to provide better grip and anti-slip properties.
How does the head shape of Cross Recessed Screws affect their performance?
The cross recess design reduces screwdriver slippage and improves fastening efficiency and safety. The fineness of the design also affects torque transmission.
What tools can be used to operate Cross Recessed Screws?
The main tools used to operate Cross Recessed Screws are Phillips screwdrivers (Philips screwdrivers) or socket tools. Different types of Cross Recessed Screws may require the appropriate tool.
What are the common materials used for Cross Recessed Screws?
Common materials include carbon steel, stainless steel, and alloy steel. Different materials offer different strength and corrosion resistance.
What are the surface treatments for Cross Recessed Screws?
Common surface treatments include zinc plating, chrome plating, phosphating treatment, etc. to improve the corrosion resistance and aesthetics of the screws.
What are the application areas of Cross Recessed Screws?
Widely used in home appliances, electronic equipment, construction, furniture and automotive industry for connecting and fixing various components.
How to choose suitable Cross Recessed Screws?
The size, material, thread type and application environment of the screw should be taken into consideration when selecting to ensure that it meets the specific engineering requirements and load demands.
How to prevent problems during installation of Cross Recessed Screws?
Ensure that you use the correct tools, align with the screw slots and avoid over-tightening to prevent damage to the screws or components. Regular inspection and maintenance will also help minimize problems.
