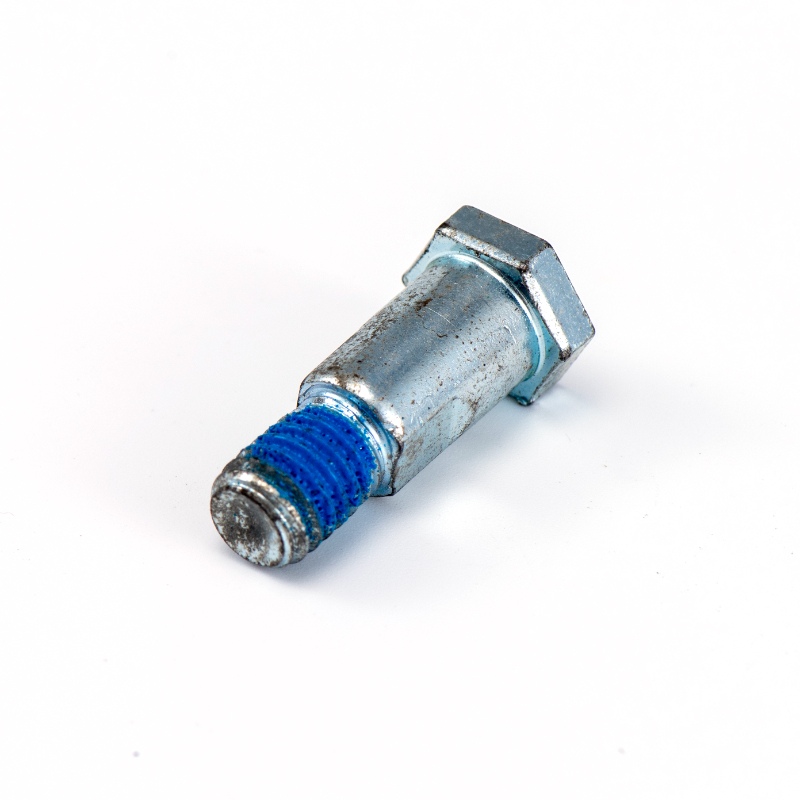

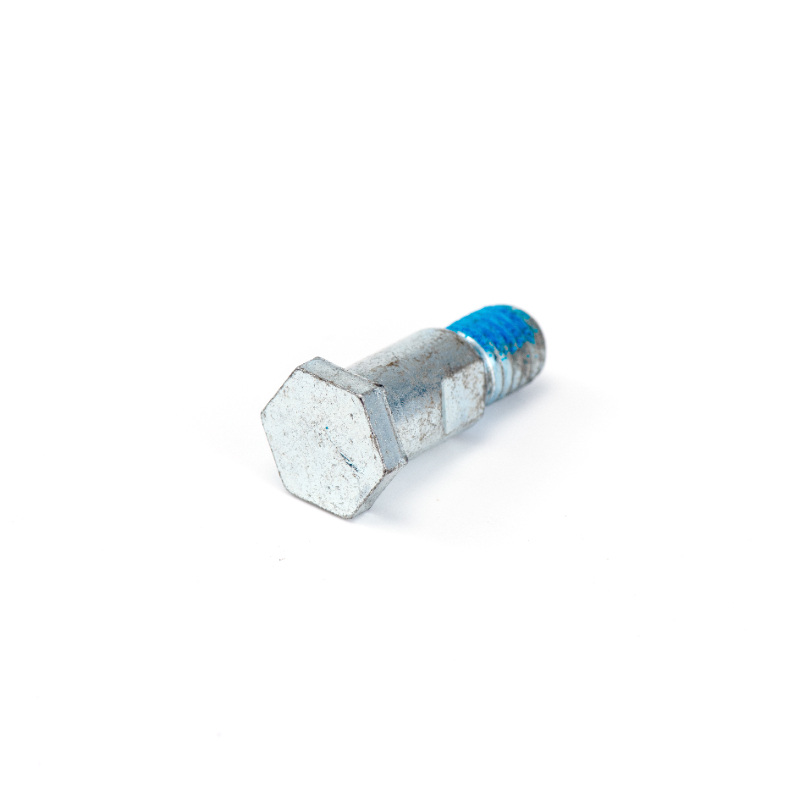

Hex Head Shoulder Screws are uniquely designed fasteners with a hexagonal head and a stepped body. This step structure allows the bolts to provide solid support and precise positioning during installation for assemblies that require a high degree of precision and reliability. The hex head design allows for tightening with a hex wrench or wrench, providing excellent torque transfer and ease of operation.Hex Head Shoulder Screws are widely used in mechanical engineering, electronic equipment, automotive manufacturing, and other industrial applications, such as when bearings need to be held in place, parts need to be positioned, and structures need to be supported. Common materials include stainless steel, carbon steel and alloy steel, and different surface treatments can be selected to enhance corrosion resistance and strength depending on specific needs. Popular for their reliability and versatility, these bolts are an integral part of complex mechanical assemblies.
Product Features
1.Hexagonal head design:The hexagonal head makes the Screws easy to tighten with a wrench or other tools, improving ease of operation and safety.
2.Shoulder Design:The presence of a shoulder provides a flat support surface that can be used as a bearing or locating device to provide additional support and stability.
3.Diverse Materials:Hex Head Shoulder Screws are usually made of stainless steel, alloy steel, aluminum alloy and other materials to suit different application environments and load requirements.
4.Multiple Sizes and Specifications:A wide selection of sizes and specifications are available to meet the needs of different mechanical and engineering applications.
5. High strength and durability:Shoulder design provides enhanced load distribution capability for high load and high stress environments.
| Parameter | Description |
|---|---|
| Material | Steel, Stainless Steel, Alloy Steel, Brass, or Aluminum |
| Thread Type | Fully Threaded or Partially Threaded |
| Thread Size | M3 to M20 or Custom Sizes |
| Shoulder Diameter | Range from 3 mm to 20 mm or Custom Sizes |
| Shoulder Length | Varies from 5 mm to 50 mm or Custom Lengths |
| Head Type | Hexagonal Head |
| Head Size | Varies (e.g., 6 mm, 10 mm, 12 mm, etc.) |
| Finish | Plain, Zinc Plated, Black Oxide, or Other Custom Finishes |
| Standard | ISO, DIN, ANSI, JIS, or Custom Standards |
| Applications | Machinery, Automotive, Aerospace, Furniture, and more |
| Certification | RoHS, CE, ISO 9001 (depending on the supplier) |
Areas of Application
Hex Head Shoulder Screws are used in a wide range of applications in many fields, including:
1. Mechanical engineering:As support and positioning components, they are widely used in mechanical devices, transmission systems and machine components.
2. Automotive industry:Used in automotive engines, chassis and body components to provide solid connections and support.
3. Aerospace:Used in aerospace structures and components to withstand extreme operating conditions and loads.
4. Electronic Equipment:Used in the assembly of precision electronic equipment to provide stable support and positioning.
5. Construction:Used as structural connectors, especially where precise positioning and high strength connections are required.
Selection and installation
The following factors should be considered when selecting the appropriate Hex Head Shoulder Screws:
1. Load Requirements:Select the appropriate shoulder size and thread specification based on the load conditions of the application.
2. Material Compatibility:Select a screw material that is compatible with the material being joined to prevent corrosion or chemical reaction.
3. Size and specification:Select the appropriate screw size and specification according to the installation space and design requirements.
4. Installation Tools:Use the appropriate tools for installation to ensure that the screws are tightened to the correct torque value.
When installing Hex Head Shoulder Screws, ensure that the shoulder is in full contact with the mounting surface for optimum support. Use a hex wrench or other suitable tool for tightening to avoid damage to the screws from over-tightening.
What are Hex Head Shoulder Screws?
Hex Head Shoulder Screws are screws with a hexagonal head characterized by an unthreaded cylindrical shoulder in front of the threaded portion. The shoulder provides additional support and positioning.
What are the key features of Hex Head Shoulder Screws?
Key features include a hexagonal head for easy wrench tightening, a shoulder design that provides support and positioning, and a wide selection of sizes and materials to suit different applications.
What materials are commonly used in Hex Head Shoulder Screws?
Common materials include stainless steel, alloy steel, aluminum alloys, and plastics, depending on the application and load requirements.
What are some common applications for Hex Head Shoulder Screws?
Common applications include mechanical engineering, the automotive industry, aerospace, electronics and construction, where high strength and precise positioning are required.
How do I choose the right Hex Head Shoulder Screws?
Selection requires consideration of load requirements, material compatibility, screw size and dimensions, and mounting tools to ensure that the screws meet the requirements of the actual application.
How do Hex Head Shoulder Screws compare to regular screws?
Hex Head Shoulder Screws have a shoulder designed to provide support and positioning, whereas common screws do not have such a shoulder and are typically used for simpler joining tasks.
How do I properly install Hex Head Shoulder Screws?
Ensure that the shoulder is in full contact with the mounting surface when installing and tighten the screws to the specified torque value using a hex wrench or other suitable tool to ensure a secure connection.
What are some common problems with Hex Head Shoulder Screws?
Common problems include loose screws, worn shoulders, corroded material or damaged threads. Solutions include regular inspections, replacing damaged screws and using proper protection.
How do I care for and maintain Hex Head Shoulder Screws?
Regularly check the tightness of the screws, clean and lubricate the screws and shoulders, and replace damaged parts in a timely manner to maintain the reliability and stability of the connection.
What load conditions are Hex Head Shoulder Screws suitable for?
Hex Head Shoulder Screws are suitable for high load and stress conditions, especially in applications requiring precise support and positioning, such as support of mechanical devices, fixing of automotive components and assembly of aerospace vehicles.
